Arc Continuous Casting Machine

The Arc Continuous Casting Machine is also called a full arc continuous caster.

The mold of the arc continuous casting machine is arc-shaped.

Both the mold and the secondary cooling section are configured on the quarter arc. Before being straightened, the billet moves downward along the arc and solidifies.

The arc caster is mainly used to cast small billets and round billets below 150mm.

Description

Arc Continuous Casting Machine

The Arc Continuous Casting Machine is also called a full arc continuous caster.

The mold of the arc continuous casting machine is arc-shaped.

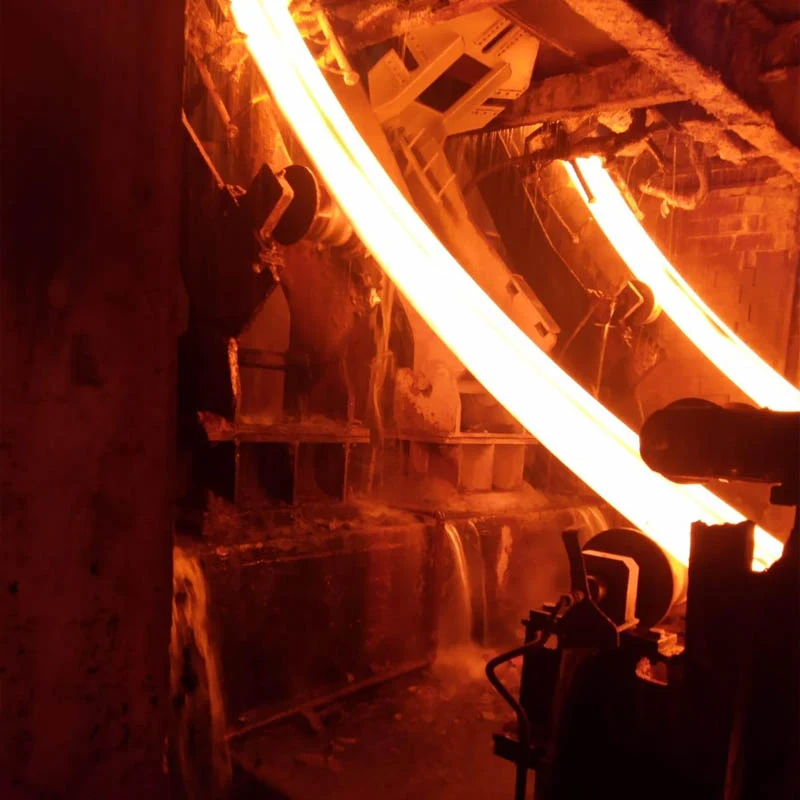

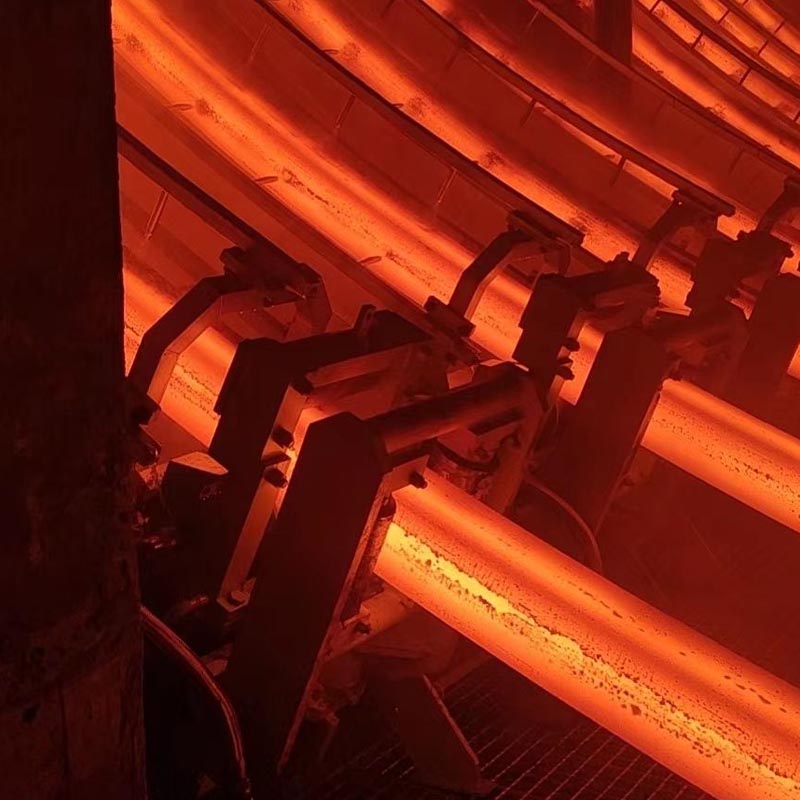

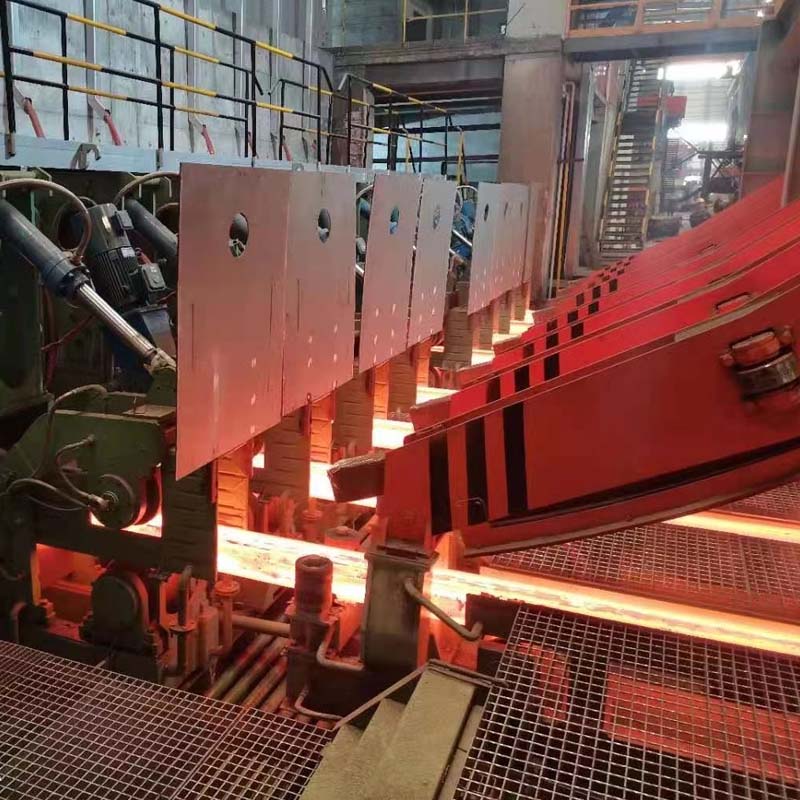

The secondary cooling device forms an arc billet in the mold in a quarter of the arc. During the downward movement along with the arc roller table, it receives water spray cooling until it is completely solidified.

After full solidification, the billet enters the straightener at the horizontal tangent point,  then cut to a fixed length.

The mold is arc-shaped, so the drawn billet is also arc-shaped. Both the mold and the secondary cooling section are configured on the quarter arc. Before being straightened, the billet moves downward along the arc and solidifies. It is straightened once with a five roller tension leveler in front of the vertical center tangent point.

When the billet is straightened, the inner arc extends outward and the outer arc is extruded inward. Because the five roller tension leveler is single-point straightening.

In order to prevent the billet from cracking, breaking, and internal damage, the deformation of the billet should be controlled within the allowable deformation coefficient, and the arc radius should be increased, which is the reason why the arc machine should be built.

The arc caster is mainly used to cast small billets and round billets below 150mm.



Parameter



Parameter of Arc Continuous Casting Machine

Serial Number
Item
Unit
Parameter
1
Continuous casting machine model
Full rigid dummy bar full arc type, continuous straightening
2
The basic radius of casting machine
m
R8.5
3
Number of continuous casting machines × number of strands strands
1×6
4
Strands spacing
mm
900
5
Billet section size
mm
120×120、130×130、150×150、160×160
6
Fixed length
m
6.0~12.0
7
Cast steel grade
Plain carbon steel, low alloy structural steel
8
Crystallizer copper tube length
mm
900
9
Crystallizer Electromagnetic Stirring
none
10
Ladle backcasting equipment type
The horizontal arrangement of two ladle trucks
11
Tundish car type
12
Vibration pattern
Half-leaf spring sinusoidal vibration
13
Dummy bar storage type
Cylinder drive, hydraulic tilt
14
Secondary cooling type
High-pressure water atomization cooling
15
Crystallizer liquid level automatic control
16
Elevation of blank roll surface
m
±0.000
17
Annual output of continuous caster
t/a
80×(10×10×10×10)



Feature



Process Characteristics of Arc Continuous Casting Machine:

First, the arc radius is 13 meters.

Because the size of the arc radius can directly match a variety of different steel grades for flexible production, the production range of the square and round billet caster is greatly widened. Improving the quality level of the internal billet, not only effectively improves the control effect of the caster but also improves the flexibility of production and promotes the improvement of the comprehensive benefits of the enterprise.



Second, square billet and round billet can be produced together.

Due to the strong flexibility of the equipment and the need for corresponding technical adjustment for different customers in actual production, this highlights the characteristics of square and round billet caster machines.

Due to the flexible exchange, it can not only improve the manufacturing radius of round billet but also carry out the production of square billet, so that one machine can be used for multiple purposes, which greatly expands the scope of use.

Thus, the production and procurement costs are saved for the enterprise.



Third, the automatic protection technology.

Because the automatic equipment is added to the square and round billet continuous caster, the distribution uniformity of protective slag is realized by effectively controlling the addition speed of protective slag.

In addition, the application scope of automatic protection technology also includes improving the lubrication conditions inside the mold and promoting the overall efficiency of production, so as to reduce the production risk and improve the overall profit.



Fourth, the automatic mixing technology.

A built-in hollow crystallization electromagnetic stirrer is set inside the square and round billet arc caster to achieve the effect of synchronous production of the slab surface and internal structure, which greatly improves the internal quality of the slab.

Since the application principle of automatic stirring technology mainly depends on electromagnetic stirring, the energy consumption is reduced.

Compared with the use mode of traditional continuous caster, the secondary cooling end electromagnetic stirrer also has the effect of expanding the axial crystal rate of the billet. It plays a certain role in improving the loose environment inside the billet and improving the effect of central segregation of the billet.



Customized Continuous Caster



We can design and manufacture the continuous caster according to the user’s steelmaking capacity, billet size, steel grade, and user site conditions. It can also be matched for manufacturers who already have continuous casting equipment.



Custom Range

Arc radius of casting machine: R2.5-10m

Billet species: square billet, round billet, slab, special-shaped billet

Continuous casting billet material: low carbon steel, low carbon alloy steel

Design production capacity: first-class 100,000 tons, second-class 200,000 tons, third-class 300,000 tons



Service

We can provide foundation layout and layout drawings

We will send engineers to your factory to install and debug machines and provide reliable after-sales service.

Competitive price and excellent quality

Our machines are easy to operate and maintain

Less investment

Stable performance

Products can be customized according to different needs

Production capacity can be adjusted according to customer requirements

Low energy consumption
