Description

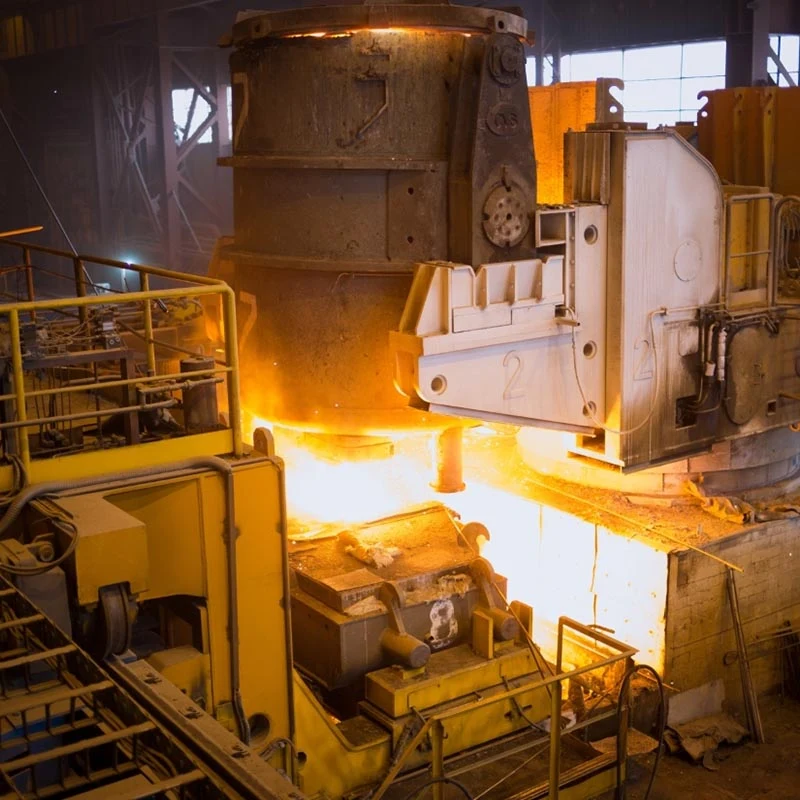

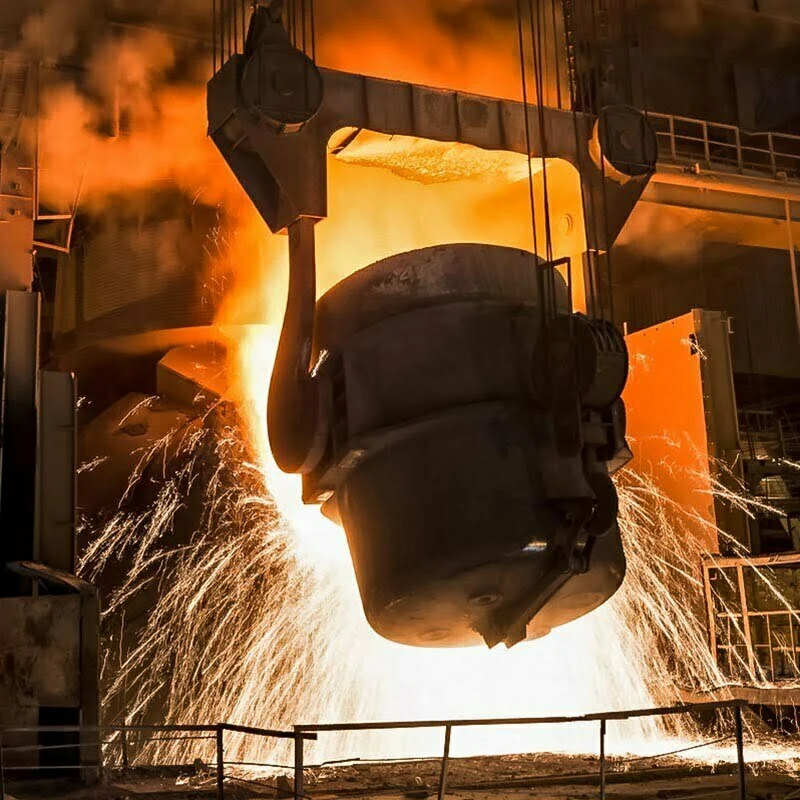

LF Ladle Refining Furnace
The LF ladle refining furnace can be used for refining molten steel in primary furnaces (electric arc furnaces, converters). It is important metallurgical equipment for continuous casting and rolling. It has the functions of atmospheric arc heating, argon blowing and stirring, alloy feeding, temperature measurement, sampling and so on. It is excellent equipment for refining outside the furnace.
Equipment Composition

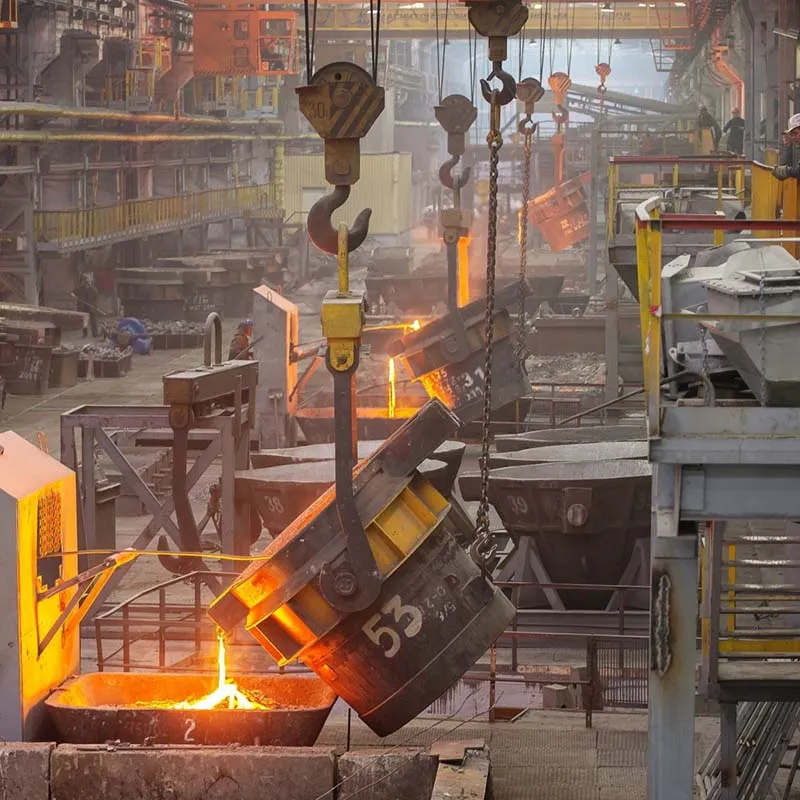

1. Ladle and ladle car;

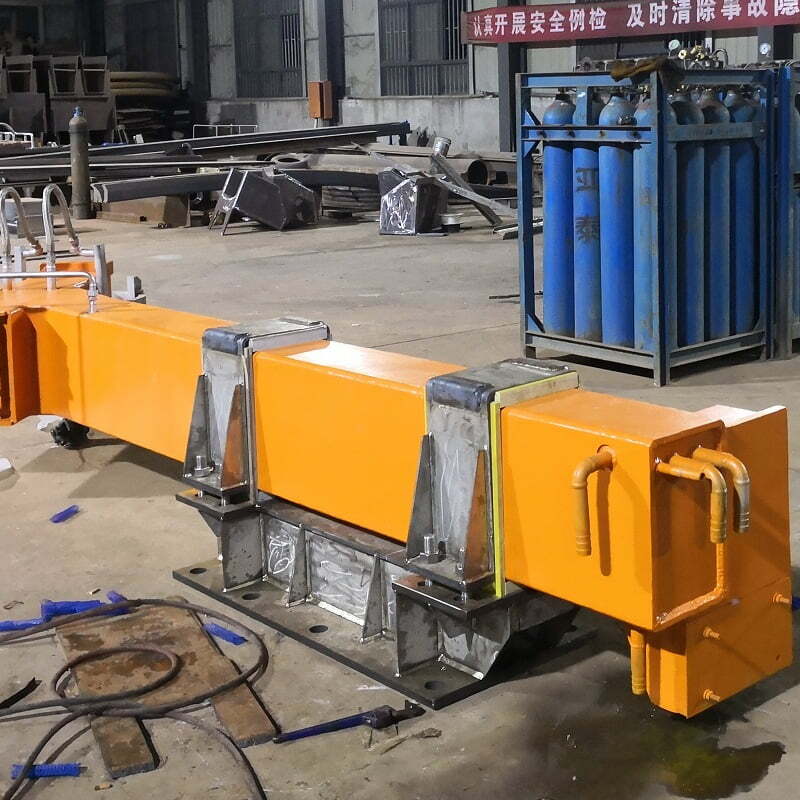

2. Heating device (electrode control mode: manual control or microcomputer automatic control. Energy-saving short net and conductive cross arm are used);
3. Vacuum and detection system;
4. Hydraulic and control valve system;
5. Argon, oxygen, compressed air and cooling water systems;
6. Electrical control system (using PLC control and CRT image analog display);
7. High voltage power system;
8. High current circuit.
The combination of LF ladle refining furnace and EBT electric furnace can achieve short processes, improve steel quality, reduce production costs, and expand smelting varieties.
Parameters
| Rated Capacity(t) | Furnace
Transformer |
Inner diameter of ladle upper opening(mm) | Graphite electrode diameter(mm) | Diameter of electrode distribution circle(mm) | Cooling water consumption(m2/h
) |
|
| Rated Capacity(MVA) | Secondary voltage（V） | |||||
| 15 | 2.0 | 185-150 | 2000 | 200 | 400 | 50 |
| 20 | 4.0 | 195-190 | 2200 | 300 | 560 | 90 |
| 25 | 4.5 | 200-120 | 2250 | 300 | 580 | 90 |
| 30 | 5.0 | 215-155 | 2450 | 300 | 580 | 120 |
| 40 | 6.3 | 220-160 | 2600 | 350 | 580 | 120 |
| 50 | 9.0 | 220-120 | 3000 | 400 | 700 | 150 |
| 60 | 10.0 | 270-170 | 3100 | 400 | 720 | 180 |
| 70 | 12.5 | 270-150 | 3280 | 400 | 720 | 180 |
| 80 | 15.0 | 270-150 | 3400 | 450 | 750 | 200 |
| 90 | 16.0 | 270-150 | 3500 | 450 | 750 | 200 |
| 100 | 18.0 | 300-180 | 3580 | 450 | 750 | 280 |
| 120 | 20.0 | 300-180 | 3680 | 500 | 800 | 300 |
Features
LF ladle furnace has many functions, such as heating and temperature rise, fine adjustment of alloy composition, argon stirring, rapid temperature measurement and sampling, desulfurization, impurity removal, wire feeding and composition adjustment, so as to reasonably match the whole steelmaking process and improve production continuity.
Customized LF Ladle Refining Furnace
We can design and manufacture the ladle refining furnaces according to the client’s required capacity, working hours, power supply, raw materials, and other related parameters. It can also be matched for users who already have the ladle refining furnace.
Custom Range
Annual capacity: 5T-50T
Diameter of cladding: 2000-4400MM
Rated transformer parameters：3-35MVA
Graphite electrode diameter：250-500MM
Service
What we can do:
Design and manufacture the LF ladle refining furnace according to the user’s requirement, including but not limited on the capacity, power supply, rated power, and so on. It can also be matched for clients who already ladle refining furnaces.
Experienced technical engineers to install and debug the LF ladle refining furnace.
Technical services and after-sale technical support.
Also can adjust the ladle refining furnace or develop and improve the capacity based on the user’s existing production line with professional engineers available for overseas installation guide and maintenance.
