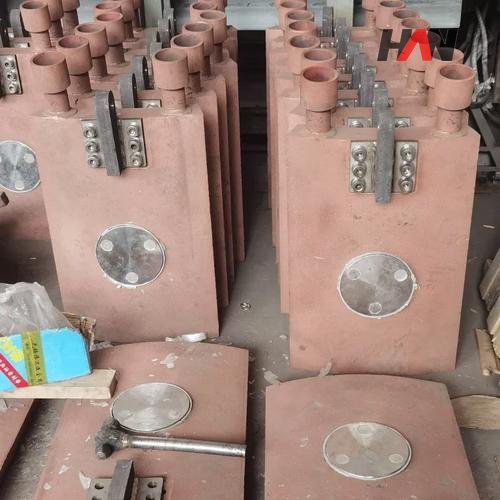

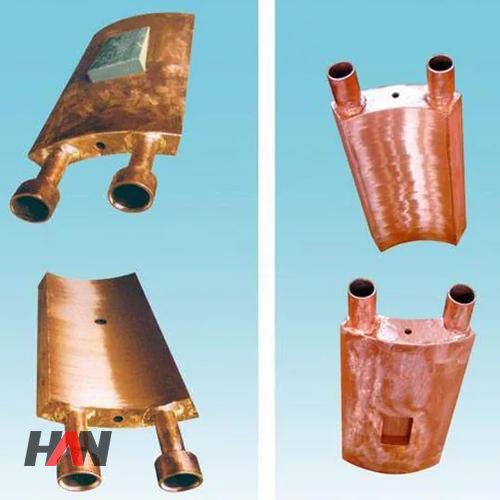

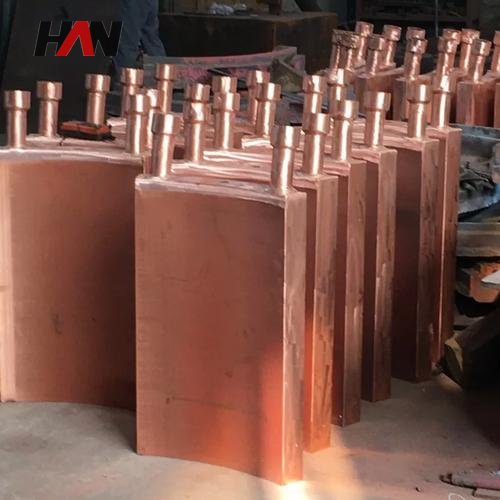

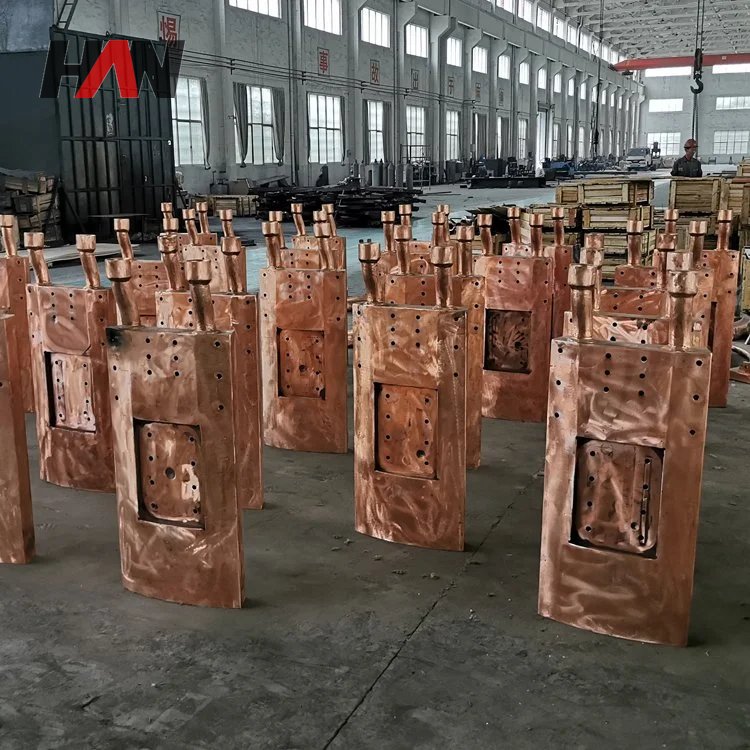

Submerged Arc Furnace Copper Contact Shoe
High-Conductivity Electrode Contacts by HANI Metallurgy
Maximum Power Delivery with HANI Copper Contact Shoes
The Submerged Arc Furnace Copper Contact Shoe is the critical interface responsible for transferring massive electrical currents from the short-net system to the electrode column. As a specialized SAF electrode contact, it must provide high electrical conductivity, superior thermal resistance, and exceptional mechanical durability. At HANI, we have engineered world-class copper shoe solutions using high-purity forged copper and advanced internal water-cooling circuits. Our electrical contact components are designed to minimize contact resistance and prevent localized overheating, ensuring that the intense energy demands of ferroalloy and silicon metal production are met with the highest possible efficiency.
HANI’s Submerged Arc Furnace Copper Contact Shoe is manufactured using a specialized extrusion and forging process that eliminates internal porosity, a common cause of premature failure in cast components. Whether for a 12.5 MVA or a 50 MVA facility, the SAF electrode contact must deliver a stable current density without arcing or pitting. Our copper shoe units feature a precision-machined contact surface that matches the curvature of the electrode, ensuring 100% surface engagement. By utilizing our electrical contact technology, producers can achieve better power factors and significantly lower maintenance costs. As a global leader in furnace consumables, HANI provides Submerged Arc Furnace Copper Contact Shoe solutions that are the industry standard for reliability and electrical performance.
Technical Parameters of HANI Copper Contact Shoes
| Technical Metric | Unit | HANI-CS-FORGED | HANI-CS-EXTRUDED | HANI-CS-HIGH-TEMP |
|---|---|---|---|---|
| Copper Purity | % | ≥99.95 | ≥99.90 | ≥99.99 |
| Electrical Conductivity | %IACS | 96-101 | 94-98 | ≥100 |
| Max. Current Density | A/cm² | 25-35 | 20-30 | 30-40 |
| Hardness (Brinell) | HB | ≥85 | ≥75 | ≥90 |
The Physics of High-Current Electrical Contacts
The performance of a Submerged Arc Furnace Copper Contact Shoe is determined by its electrical contact resistance and heat transfer coefficient. In an SAF electrode contact, the resistance is a function of the contact pressure and the surface condition of the copper. HANI’s copper shoe utilizes a proprietary “High-Pressure Contact” design that ensures the microscopic peaks and valleys of the copper surface are plastically deformed against the electrode, maximizing the effective electrical contact area.
Contact Engineering Principles:
1. Ohmic Loss Minimization: Ultra-high purity copper ensures the lowest bulk resistivity in the Submerged Arc Furnace Copper Contact Shoe.
2. Integrated Water Cooling: Deep-drilled cooling channels remove heat directly from the SAF electrode contact interface.
3. Surface Passivation: Specialized coatings to prevent oxidation and maintain low electrical contact resistance.
Scientific facts show that a 0.1 mΩ increase in contact resistance can lead to a 50°C rise in the copper shoe temperature at 60 kA. HANI’s Submerged Arc Furnace Copper Contact Shoe ensures that the SAF electrode contact temperature remains below critical limits. Our electrical contact solutions also include thermal sensors embedded within the copper block to provide real-time feedback to the furnace automation system, preventing “hot-spot” damage and extending the life of the electrode column.
Key Advantages of HANI Copper Shoes
- Highest Conductivity Grade: Our Submerged Arc Furnace Copper Contact Shoe is made from oxygen-free copper (OFC), providing the best electrical contact performance.
- Forged Structural Integrity: HANI’s SAF electrode contact is forged under 3000-ton pressure, ensuring zero internal defects and high copper shoe durability.
- Custom Contact Geometry: HANI provides bespoke electrical contact profiles tailored to the specific electrode diameter and furnace power rating.
Professional FAQ for SAF Copper Contact Shoes
Q1: Why is forged copper better than cast copper for a Submerged Arc Furnace Copper Contact Shoe?
A: Forged copper has a denser molecular structure with zero porosity. This results in higher electrical conductivity and superior thermal fatigue resistance in the SAF electrode contact compared to cast copper shoe alternatives.
Q2: How does HANI prevent water leaks in the copper shoe?
A: Our electrical contact cooling channels are CNC-machined and then sealed using specialized high-pressure welding or brazing techniques. Every Submerged Arc Furnace Copper Contact Shoe undergoes a 2.0 MPa hydrostatic test before shipment.
Q3: What is the typical life expectancy of a HANI SAF electrode contact?
A: With proper contact pressure and clean cooling water, our copper shoe units typically deliver a service life of 2 to 4 years in continuous electrical contact duty.
Maximize Your Electrical Efficiency with HANI
The Submerged Arc Furnace Copper Contact Shoe is the final gate for power entry. Partner with HANI for a high-conductivity SAF electrode contact solution that ensures reliability and energy savings today.
