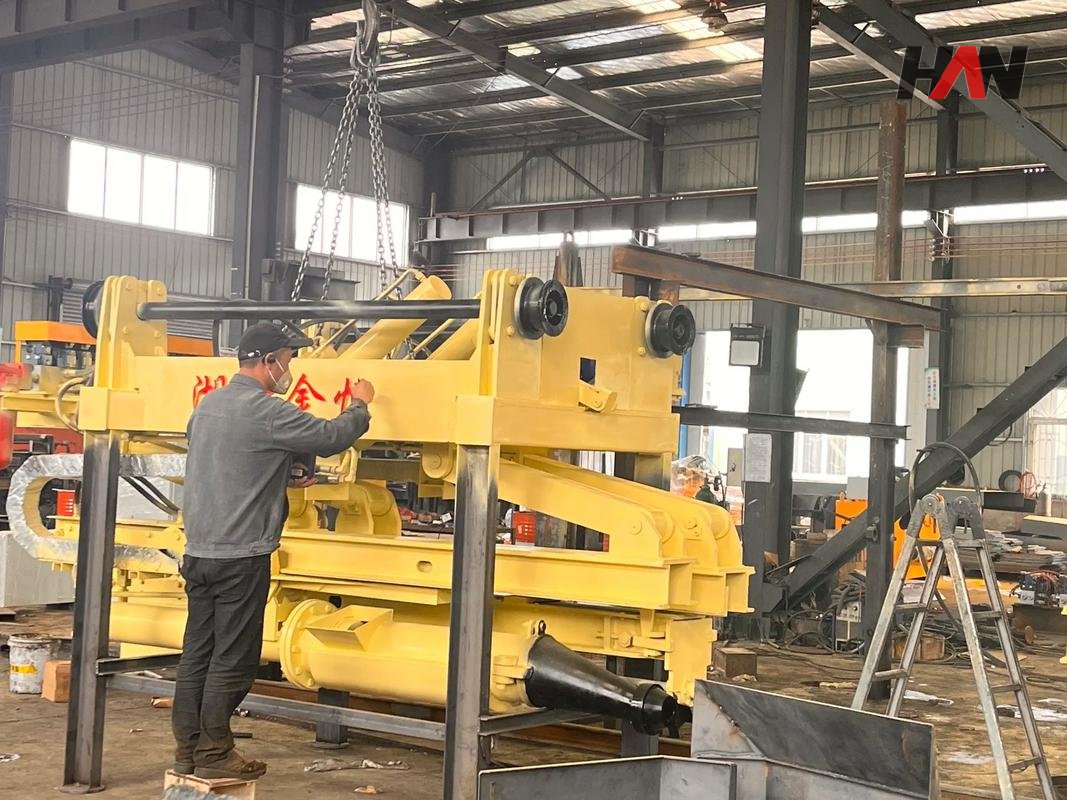

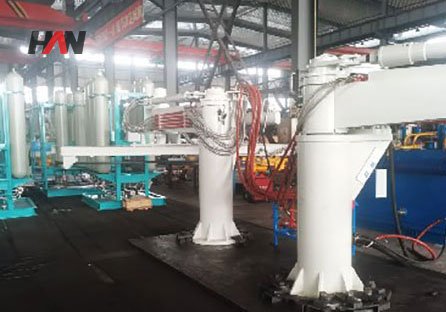

Submerged Arc Furnace Tapping Machine
High-Precision Taphole Management by HANI Metallurgy
Advancing Safety and Efficiency in Furnace Tapping
The Submerged Arc Furnace Tapping Machine is a vital component of modern metallurgical plants, specifically designed to automate the opening and closing of the furnace taphole. As a high-performance Tapping Machine, it combines the functions of an SAF taphole drill and a mud gun into a single, robust industrial platform. At HANI, we have engineered these units to handle the extreme heat and mechanical resistance of liquid ferroalloys and slags. Our furnace tapping solutions significantly reduce the physical strain on operators while ensuring that the taphole is opened with precision and closed with high-density plugging material. By utilizing the latest hydraulic and pneumatic technologies, HANI’s Submerged Arc Furnace Tapping Machine guarantees a consistent flow of molten metal, maximizing the productivity of high-capacity submerged arc furnaces.
HANI’s Submerged Arc Furnace Tapping Machine is built for durability in the harshest environments. Whether operating in a silicon manganese or ferrochrome facility, the SAF taphole drill uses heavy-duty percussion bits to penetrate the hard-baked refractory, while the mud gun provides the high pressure required to seat the plugging clay firmly. Our furnace tapping equipment is fully integrated with remote control systems, allowing for safe distance operation. As a global leader in furnace auxiliary equipment, HANI provides Submerged Arc Furnace Tapping Machine solutions that are essential for achieving stable, high-yield tapping cycles in modern metallurgical production.
Technical Parameters of HANI Tapping Machine
| Technical Metric | Unit | HANI-TM-300 | HANI-TM-500 | HANI-TM-800 |
|---|---|---|---|---|
| Drilling Diameter (Max) | mm | 80 | 100 | 120 |
| Plugging Pressure | MPa | ≥12 | ≥16 | ≥20 |
| Mud Gun Volume | L | 30 | 50 | 80 |
| Rotational Speed | rpm | 0-200 | 0-250 | 0-300 |
The Engineering Science of Taphole Management
The performance of a Submerged Arc Furnace Tapping Machine is determined by the synergy between the SAF taphole drill and the mud gun. In furnace tapping, the taphole must be opened at a consistent angle to prevent “undercutting” of the refractory lining. HANI’s technology utilizes a heavy-duty hydraulic percussion mechanism that can drill through the toughest slag crusts while maintaining a perfect taphole geometry.
Tapping Control Principles:
1. Precision Alignment: Laser-guided positioning ensures the Tapping Machine hits the same spot every cycle.
2. Variable Drilling Speed: Automatic torque adjustment for the SAF taphole drill based on refractory hardness.
3. High-Density Plugging: The mud gun ensures zero void space in the taphole, preventing metal leakage.
Scientific facts show that a well-maintained taphole increases the furnace hearth life by over 20% by reducing thermal shock and metal erosion. HANI’s Submerged Arc Furnace Tapping Machine ensures that the furnace tapping process is not only faster but also more technically controlled. Our Tapping Machine solutions also include water-cooling for the drill bits and mud gun nozzles to ensure long-term reliability under 1600°C+ radiant heat.
Key Advantages of HANI Tapping Technology
- High Torque Drilling: Our SAF taphole drill provides the highest torque in its class, ensuring rapid opening even with high-silicon slag.
- Stable Mud Injection: The HANI mud gun utilizes a specialized piston design that prevents mud “clogging” and ensures high-density sealing.
- Remote Smart Monitoring: Our Tapping Machine is equipped with sensors that allow operators to track the furnace tapping force and depth in real-time.
Professional FAQ for SAF Tapping Machines
Q1: How does HANI ensure the safety of operators during furnace tapping?
A: Our Submerged Arc Furnace Tapping Machine is operated from a remote cabin with explosion-proof glass, ensuring that no personnel need to be within the furnace tapping danger zone during the process.
Q2: What is the typical life of the SAF taphole drill bits?
A: With HANI’s specialized bit-cooling and high-strength alloy bits, a single bit can typically handle 10-15 furnace tapping cycles before requiring a change.
Q3: Can the mud gun handle different types of tapping clay?
A: Yes. The HANI mud gun is designed with adjustable pressure settings, making it compatible with both carbon-based and alumina-based tapping clays used in various Tapping Machine applications.
Master Your Tapping Cycle with HANI
The Submerged Arc Furnace Tapping Machine is the key to safe and profitable operations. Partner with HANI for a high-performance furnace tapping solution that delivers results today.
