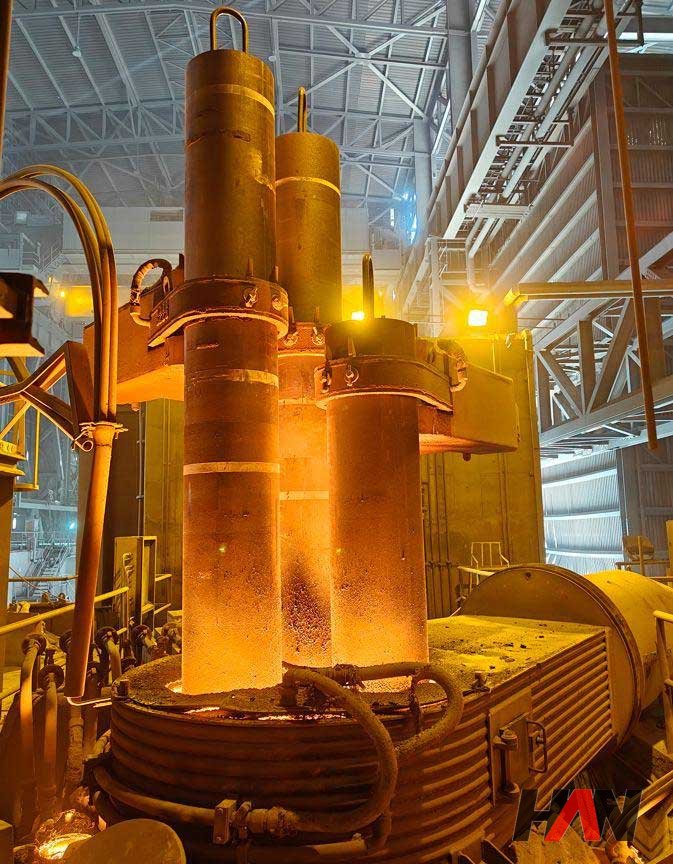

Ladle Refining Furnace (LF)
High-Precision Steel Refining Solutions by HANI Metallurgy
The Essential Bridge in Modern Steelmaking
The Ladle Refining Furnace (LF) is an indispensable component of the secondary metallurgy process, serving as the critical link between primary steelmaking and continuous casting. As a specialized LF furnace, it is engineered to perform deep refining of molten steel, ensuring precise temperature control and chemical homogeneity. At HANI, we have mastered steel refining technology, integrating advanced electrode regulation and automated alloy addition to deliver high-quality steel grades. Our secondary metallurgy solutions are designed for reliability, cost-effectiveness, and operational ease, making them the preferred choice for metallurgical facilities worldwide.
A HANI Ladle Refining Furnace (LF) operates under a reducing atmosphere and slight positive pressure, utilizing graphite electrode arc heating and bottom argon stirring. This LF furnace setup is vital for deoxidation, desulfurization, and the removal of non-metallic inclusions, ensuring the production of clean steel. By providing a buffer between primary melting and casting, our steel refining equipment optimizes the production flow and enhances the overall capacity of the steel plant. As a leader in secondary metallurgy, HANI ensures that every Ladle Refining Furnace (LF) meets the most rigorous quality standards.
Key Functions of HANI LF Furnace
| Functionality | Technical Description | Metallurgical Benefit |
|---|---|---|
| Arc Heating | 3-phase graphite electrode regulation via PLC. | Precise temperature adjustment for casting. |
| Argon Stirring | Automated bottom blowing control system. | Chemical & thermal homogeneity. |
| Alloy Trimming | Automated alloy addition & wire feeding. | Tight control of chemical composition. |
| Slag Refining | Synthetic slag formation & desulfurization. | Deep sulfur removal & inclusion trapping. |
Chemical Basis of Secondary Metallurgy
The steel refining process in a Ladle Refining Furnace (LF) is driven by thermodynamics and mass transfer kinetics. In an LF furnace, the reducing atmosphere is maintained to promote the reaction between the molten steel and the basic refining slag. HANI’s secondary metallurgy technology optimizes the desulfurization reaction by maintaining high slag basicity and vigorous argon stirring, ensuring that the sulfur content can be reduced to less than 0.005%.
Principal Refining Reactions in LF:
1. [S] + (CaO) → (CaS) + [O] (Desulfurization)
2. 2[Al] + 3[O] → (Al2O3) (Deoxidation)
3. [Si] + 2[O] → (SiO2)
Scientific facts from HANI‘s engineering research demonstrate that the removal of inclusions in a Ladle Refining Furnace (LF) is significantly enhanced by the flotation effect of argon bubbles. Our LF furnace design ensures that the stirring energy is sufficient to promote inclusion collision and absorption into the slag layer, resulting in superior steel purity. As a pioneer in steel refining, HANI provides secondary metallurgy solutions that are both environmentally compliant and highly efficient.
Key Advantages of HANI Ladle Refining Technology
- Advanced Automation: Our LF furnace features “one-click steelmaking” technology, integrating automatic temperature measurement, sampling, and alloy calculation for consistent steel refining.
- Efficient Heat Transfer: HANI’s Ladle Refining Furnace (LF) uses a patented water-cooled roof design that reduces dust collection volume and investment costs while protecting the secondary metallurgy structure.
- High Power Efficiency: Equipped with world-class PLC electrode regulation systems, our LF furnace achieves the most stable arc and lowest power consumption in steel refining.
Professional FAQ for LF furnace
Q1: What is the typical heating rate of a HANI Ladle Refining Furnace (LF)?
A: Depending on the transformer capacity and ladle size, HANI’s LF furnace can achieve a heating rate of 3.0 to 5.0°C per minute, allowing for rapid steel refining and temperature adjustment.
Q2: How does the LF furnace improve steel purity?
A: Through synthetic slag refining and bottom argon stirring in the Ladle Refining Furnace (LF), non-metallic inclusions are floated to the slag, ensuring the secondary metallurgy process yields exceptionally clean steel.
Q3: Can HANI provide dual-station Ladle Refining Furnace (LF) setups?
A: Yes. HANI designs both electrode-rotating dual-station and ladle-turntable dual-station LF furnace configurations to maximize steel refining productivity and plant layout efficiency.
Ready to Elevate Your Secondary Metallurgy?
The Ladle Refining Furnace (LF) is the key to producing premium steel grades. Partner with HANI for a world-class LF furnace solution that combines precision, efficiency, and reliability.
