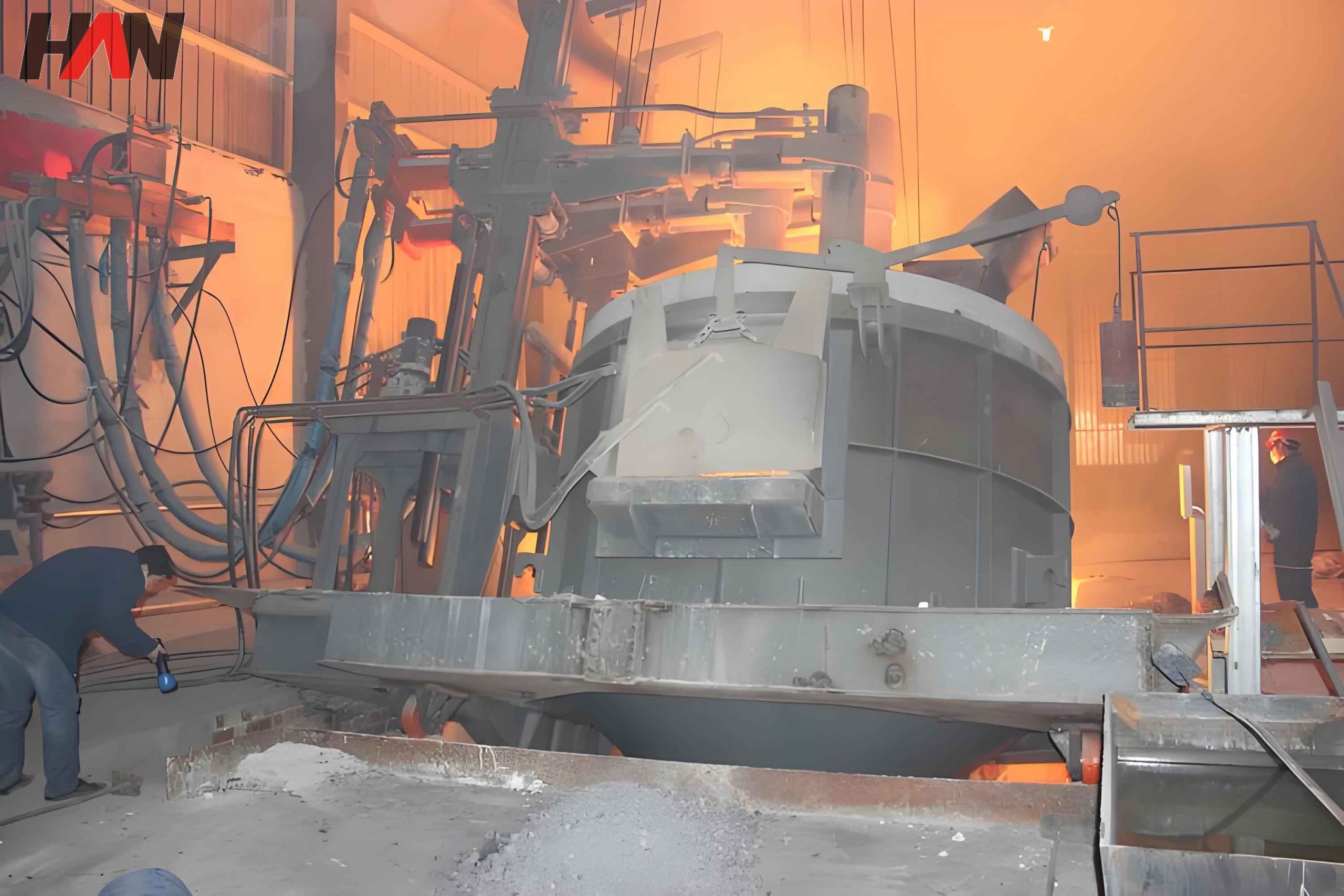

Low Carbon Ferrochrome Refining Equipment
Precision Refining Solutions by HANI Metallurgy
The Essential refining for High-Grade Stainless Steel
The Low Carbon Ferrochrome Refining Equipment is the cornerstone of producing high-purity ferrochrome with carbon content typically below 0.5% or even 0.1%. As the most critical component in Low Carbon Ferrochrome Refining, this equipment is primarily used to supply the stainless steel industry with the chromium necessary for corrosion resistance without introducing excess carbon. At HANI, we specialize in high-efficiency LC FeCr refining systems that utilize the electro-silicothermic process or the Perrin (PER) method. Our refining furnace units are engineered to deliver consistent alloy quality, ensuring that every batch meets the stringent chemical specifications required for nuclear-grade or aerospace-grade stainless steels.
The production of low-carbon ferrochrome is significantly more complex than high-carbon variants. It requires a dedicated Low Carbon Ferrochrome Refining Equipment setup where silicon-chrome alloy, chrome ore, and lime are reacted at high temperatures. HANI’s LC FeCr refining technology focuses on maximizing chromium recovery while minimizing the silicon residue in the final alloy. By integrating advanced automation with robust mechanical design, our refining furnace has become the preferred choice for metallurgical facilities globally.
Technical Parameters of HANI LC FeCr Refining Furnace
| Model Specification | Unit | HANI-LC3.6 | HANI-LC6.3 | HANI-LC9.0 | HANI-LC12.5 |
|---|---|---|---|---|---|
| Transformer Capacity | MVA | 3.6 | 6.3 | 9.0 | 12.5 |
| Hearth Inside Diameter | mm | 3200 | 4200 | 4800 | 5600 |
| Tapping Frequency | Batches/d | 10-12 | 8-10 | 8-10 | 6-8 |
| Power Consumption | kWh/t | 1800-2200 | 1600-2000 | 1500-1900 | 1400-1800 |
Scientific Principles of LC FeCr Refining
The Low Carbon Ferrochrome Refining Equipment typically operates using the electro-silicothermic method. In this process, silicon-chromium alloy (Si-Cr) is used as the reducing agent. The Low Carbon Ferrochrome Refining reaction takes place in a specialized refining furnace where the silicon in the Si-Cr alloy reduces the chromium oxide (Cr2O3) and iron oxide (FeO) in the slag phase.
Principal Chemical Reaction:
2Cr2O3 + 3Si + nCaO → 4Cr + 3CaSiO3 + Heat
To achieve carbon levels below 0.1%, the LC FeCr refining process must be performed in a refining furnace with a high-basicity slag (basicity > 1.5). HANI’s Low Carbon Ferrochrome Refining Equipment ensures that the slag temperature is maintained precisely to promote the separation of the alloy and slag, resulting in a cleaner product with minimal inclusions.
Production Reference Values for LC FeCr Refining
HANI recommends the following operational guidelines for your Low Carbon Ferrochrome Refining Equipment:
- Material Mix: 1 ton of LC FeCr typically requires ~600kg of chrome ore concentrate, ~400kg of silicon-chrome alloy, and ~700kg of lime.
- Temperature Control: The tapping temperature should be between 1700°C and 1750°C. HANI’s refining furnace provides the high thermal density needed for this.
- Electrode Management: Graphite electrodes are preferred in the Low Carbon Ferrochrome Refining process to prevent carbon pickup from the electrode material.
Professional FAQ for LC FeCr Refining Furnace
Q1: How does HANI ensure carbon levels stay low during refining?
A: Our Low Carbon Ferrochrome Refining Equipment is designed to operate with high-purity graphite electrodes and specialized refractory materials that do not contain carbonaceous binders, eliminating carbon contamination in the LC FeCr refining zone.
Q2: What is the benefit of the electro-silicothermic method in a HANI refining furnace?
A: This method provides a cleaner reaction with higher chromium recovery (up to 96%) compared to older aluminothermic methods, making the Low Carbon Ferrochrome Refining process more economically viable.
Q3: Can HANI provide the full plant design for LC FeCr refining?
A: Yes. We offer turnkey services including refining furnace design, automation integration, and the surrounding material handling systems for complete Low Carbon Ferrochrome Refining Equipment installations.
Ready to Upgrade Your LC FeCr Production?
Achieving precision in Low Carbon Ferrochrome Refining requires world-class equipment. Contact HANI today to discuss how our refining furnace technology can optimize your operations.
