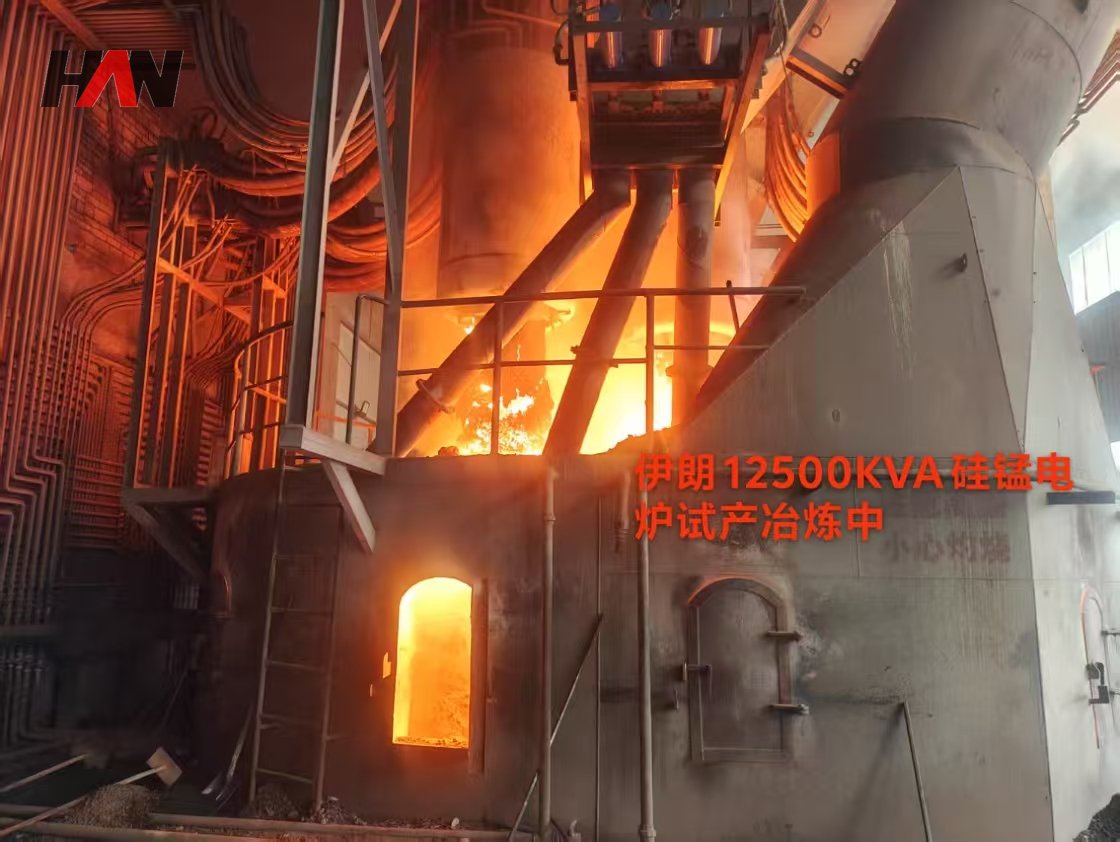

Submerged Arc Furnace for Silicomanganese
Professional SAF Silicomanganese Smelting Equipment by HANI
Advancing Metallurgy with HANI Smelting Technology
The Submerged Arc Furnace for Silicomanganese is a specialized industrial furnace designed for the high-efficiency production of manganese-silicon alloys. Utilizing advanced fully-enclosed furnace designs and high-intensity submerged arc smelting technology, this smelting equipment serves as the backbone of the global ferroalloy industry. As a key player in modern metallurgy, the SAF silicomanganese unit produced by HANI integrates decades of engineering expertise to deliver high-purity alloy materials essential for steelmaking and manufacturing. Our Submerged Arc Furnace for Silicomanganese is engineered to ensure low-cost operation, high reliability, and consistent production capacity, meeting the most stringent contractual performance requirements.
The modern SAF silicomanganese process requires precise control over thermal dynamics and chemical reduction. HANI’s smelting equipment is optimized for the reduction of manganese and silicon oxides using carbon-based reductants. By employing a submerged arc state—where the electrode tips are buried deep within the charge—heat loss is minimized, and reaction rates are maximized. This level of technical refinement in our Submerged Arc Furnace for Silicomanganese ensures that energy consumption remains at the lowest industry thresholds while alloy recovery rates exceed standard benchmarks.
Comprehensive Smelting Equipment Components
A complete Submerged Arc Furnace for Silicomanganese is an intricate assembly of several critical sub-systems. HANI ensures every component of the smelting equipment is built for durability and precision:
1. Furnace Shell & Lining
Heavy-duty steel furnace shell with high-performance refractory lining (carbon bricks and high-alumina bricks) tailored for the corrosive nature of SAF silicomanganese slag.
2. Short Net System
Optimized low-impedance electrical busbars and water-cooled cables designed to maximize the power factor of the Submerged Arc Furnace for Silicomanganese.
3. Fully-Enclosed Hood
Our smelting equipment features a sealed hood for furnace gas collection, preventing toxic emissions and enabling energy recovery in the SAF silicomanganese plant.
4. Electrode & Lifting System
High-precision hydraulic lifting and slipping mechanisms ensure constant electrode positioning within the Submerged Arc Furnace for Silicomanganese.
5. Environmental Systems
Includes exhaust systems and advanced dust collection units integrated into the smelting equipment to meet global green standards.
6. Cooling & Loading
Comprehensive water cooling for vital parts and automated material charging/unloading systems for the SAF silicomanganese unit.
Key Technical Specifications of HANI SAF Silicomanganese
The following data represents our standard range of Submerged Arc Furnace for Silicomanganese units.
| Parameter Description | Unit | HANI-12500 | HANI-25500 | HANI-33000 | HANI-45000 |
|---|---|---|---|---|---|
| Transformer Capacity | MVA | 12.5 | 25.5 | 33.0 | 45.0 |
| Rated Power Factor | cosφ | ≥0.90 | ≥0.92 | ≥0.92 | ≥0.93 |
| Furnace Interior Diameter | mm | 5800 | 7800 | 8800 | 10200 |
| Electrode Consumption | kg/t | 25-30 | 22-28 | 20-25 | 18-22 |
| Power Consumption | kWh/t | 3800-4100 | 3600-3900 | 3500-3800 | 3400-3700 |
Scientific Principles of SAF Silicomanganese Smelting
The production of silicomanganese in a Submerged Arc Furnace for Silicomanganese is governed by thermodynamics and kinetics of carbothermic reduction. Manganese exists in various oxidation states, primarily as MnO2, Mn2O3, and MnO. During the smelting process within our smelting equipment, manganese oxides are reduced sequentially. The silicon dioxide (SiO2) reduction requires higher temperatures, often exceeding 1600°C, which are readily provided by the concentrated electrical arc in the SAF silicomanganese hearth.
Primary Chemical Transformations:
1. MnO + C → Mn + CO (Reduced at lower layers)
2. SiO2 + 2C → Si + 2CO (Reduced at arc zone temperature >1550°C)
3. Mn + Si → MnSi (Final alloy synthesis)
4. FeO + C → Fe + CO (Iron reduction from ores)
The effectiveness of the Submerged Arc Furnace for Silicomanganese depends on maintaining a “slag-rich” operation to prevent excessive manganese evaporation. HANI’s smelting equipment utilizes a specific crucible geometry that promotes the separation of the alloy and slag based on density differences, ensuring that the final SAF silicomanganese product meets international quality standards for purity and carbon content.
Production Reference Values for SAF Silicomanganese
Operational stability is the hallmark of HANI’s smelting equipment. For a standard 25.5 MVA Submerged Arc Furnace for Silicomanganese, we provide the following production references based on extensive field data:
- Charge Ratio: A typical blend for SAF silicomanganese consists of 65-70% manganese ore, 15-20% quartz, and 12-15% coke. Precise batching is managed by HANI’s automated weighing system.

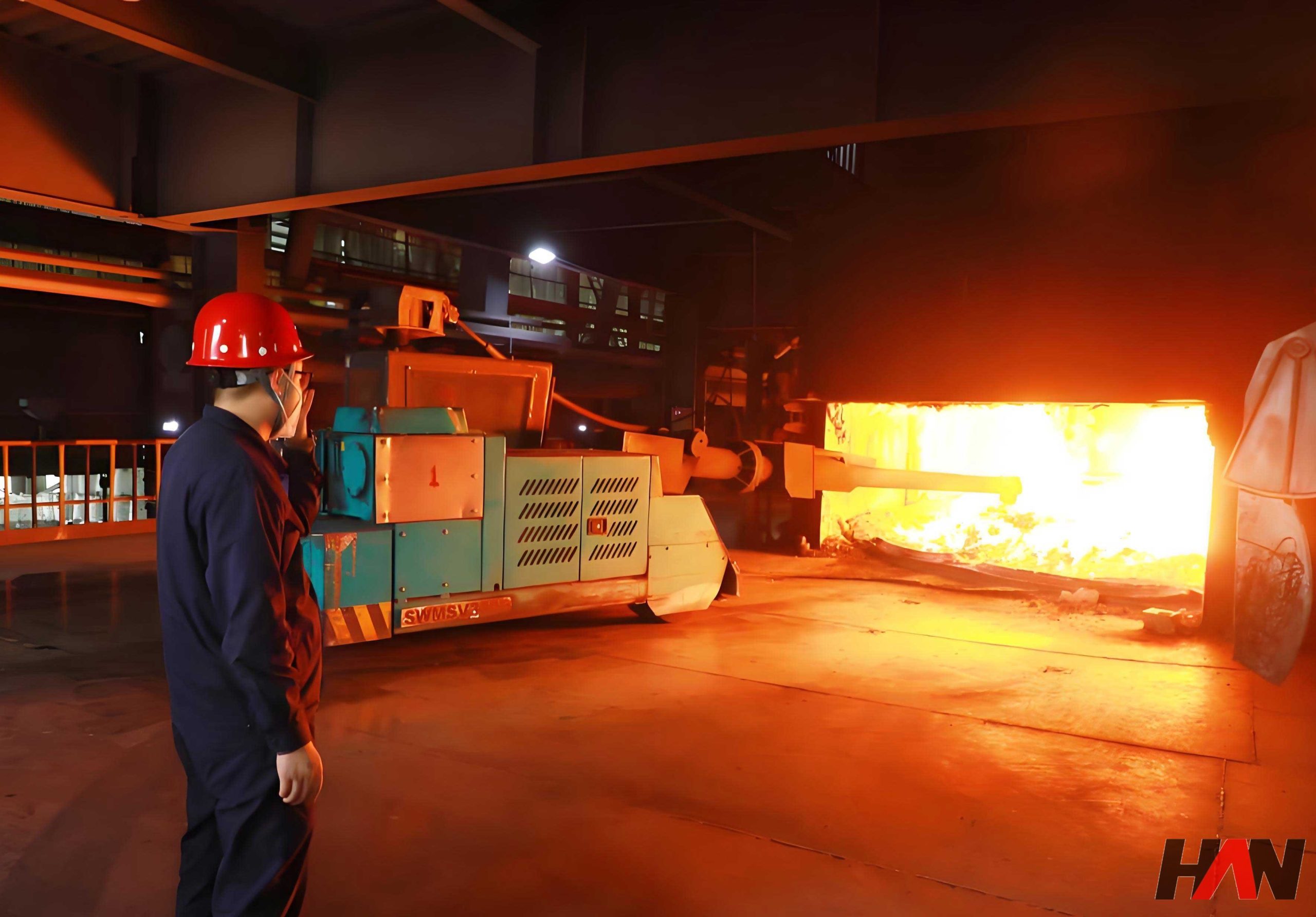

- Tapping Frequency: For optimal efficiency, tapping should occur every 2 to 3 hours. Our smelting equipment features reinforced tapholes to withstand high-velocity alloy discharge.
- Energy Utilization: Over 70% of the electrical energy in our Submerged Arc Furnace for Silicomanganese is converted into metallurgical heat, with the remaining loss accounted for by cooling water and structural radiation.
- Slag Management: The MnO content in the slag of an efficient SAF silicomanganese unit should ideally range between 12% and 15% to ensure high metal recovery rates.
The HANI Advantage in Smelting Equipment
Why HANI is the preferred partner for SAF silicomanganese projects globally.
Innovation in Structure
HANI’s Submerged Arc Furnace for Silicomanganese features a unique furnace shell geometry that improves gas flow and prevents “hanging” of raw materials, ensuring a smooth smelting cycle.
Total Automation
Our smelting equipment is equipped with the latest Siemens-based PLC systems, allowing for remote monitoring of electrode impedance, current, and transformer status.
Cost Leadership
By optimizing the short net and reducing reactance, HANI’s Submerged Arc Furnace for Silicomanganese significantly lowers electricity costs per ton of alloy produced.
Maintenance & Long-Term Reliability
The long-term ROI of smelting equipment depends on its maintainability. At HANI, we design the Submerged Arc Furnace for Silicomanganese with ease of access in mind. The water-cooling components are modular, allowing for quick replacement without total system shutdown. Furthermore, our SAF silicomanganese units are built with structural safety factors of 2.0 or higher to withstand unexpected thermal surges.
Regular maintenance of the Submerged Arc Furnace for Silicomanganese includes monthly inspections of the electrode holders and quarterly calibration of the hydraulic slipping rings. By following HANI’s prescribed maintenance protocol, operators can extend the life of their smelting equipment to over 15 years with minimal major overhauls.
Professional FAQ for SAF Silicomanganese Units
Q1: Why is the fully-enclosed design preferred for the Submerged Arc Furnace for Silicomanganese?
A: The fully-enclosed smelting equipment design enables the collection of furnace gas (high in CO content). This gas can be cleaned and repurposed for plant heating or ore pre-drying. Additionally, it prevents hazardous dust emissions, making the SAF silicomanganese plant much cleaner and more energy-efficient.
Q2: What is the significance of the “Submerged” state in your equipment?

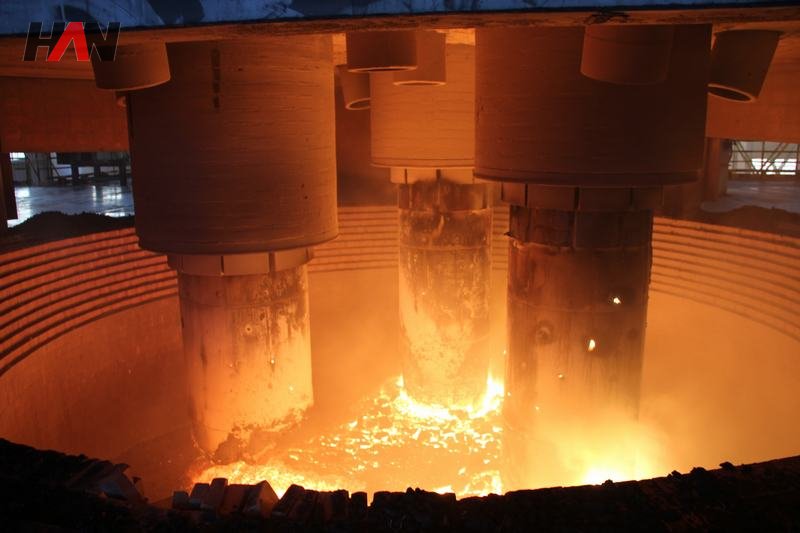

A: In a Submerged Arc Furnace for Silicomanganese, the electrodes are buried under the material layer. This forces the arc energy into the furnace’s “hearth center,” preventing heat loss to the surface and protecting the furnace cover. It is the core reason why SAF silicomanganese is more efficient than open-arc furnaces.
Q3: How does HANI ensure the stability of alloy chemistry?
A: Our smelting equipment features a proprietary “Deep-Zone Reduction” logic in its control software. By monitoring electrode consumption and material porosity, the system ensures that silicon and manganese are reduced at a balanced rate, keeping the final Submerged Arc Furnace for Silicomanganese output within ±0.5% of the target SiMn grade.
Q4: What are the cooling requirements for the SAF silicomanganese unit?
A: A high-capacity Submerged Arc Furnace for Silicomanganese requires a closed-loop water cooling system with a flow rate of approximately 200-500 m³/h. HANI provides high-quality cooling jackets and emergency backup pumps with all smelting equipment to prevent overheating during power fluctuations.
Partner with HANI for Your Silicomanganese Project
Choosing the right smelting equipment is the most critical decision for any metallurgical venture. HANI’s Submerged Arc Furnace for Silicomanganese offers the perfect blend of technological innovation and production stability. We don’t just sell equipment; we provide a complete metallurgical solution including design, manufacturing, and installation for your next SAF silicomanganese project.
