Description

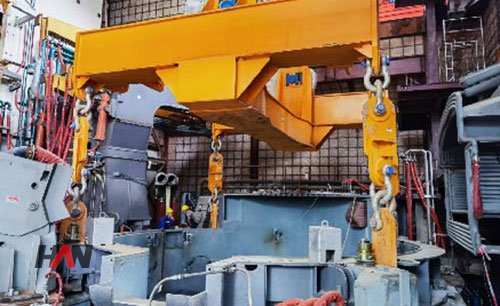

Submerged Arc Furnace Lifting Tool / SAF Lifting Tool
High-Durability Handling Equipment by HANI Metallurgy
Efficiency and Safety in Heavy Smelting Logistics
The Submerged Arc Furnace Lifting Tool, also known as the SAF Lifting Tool, is a critical component in the maintenance and logistical operations of a modern ferroalloy plant. As a specialized furnace shell lifter and general handling equipment, it is engineered to move large, heavy components such as electrodes, furnace lids, and entire furnace shells with the highest level of safety and precision. At HANI, we have developed a range of high-durability Submerged Arc Furnace Lifting Tool solutions that minimize the risk of structural deformation and material damage during complex lifting maneuvers. Our SAF Lifting Tool designs utilize high-grade alloy steel and redundant safety interlocks, providing a stable and reliable platform for large-scale metallurgical logistics.
HANI’s Submerged Arc Furnace Lifting Tool is designed for the extreme conditions found in an EAF or SAF bay. Whether handling a hot electrode column or a reinforced furnace shell lifter assembly, the tool ensures balanced load distribution and zero-drift positioning. The system features a modular design, allowing for rapid configuration based on the specific handling equipment needs of the plant. By utilizing our lifting technology, producers can achieve faster maintenance turnarounds and a significantly lower risk of workplace accidents. As a leader in heavy industrial handling, HANI provides Submerged Arc Furnace Lifting Tool solutions that are essential for the safe and efficient operation of high-capacity smelting facilities.
Core Systems of HANI SAF Lifting Tools
| Tool Category | Technical Component | Functional Objective |
|---|---|---|
| Electrole Lifting | High-grip hydraulic or mechanical clamps with thermal lining. | Safe handling of hot Submerged Arc Furnace Lifting Tool components. |
| Shell Lifting | Multi-point furnace shell lifter with adjustable center of gravity. | Zero-deformation movement of large handling equipment. |
| Safety Systems | Redundant load pins and automated locking pins. | 100% fail-safe operation of the SAF Lifting Tool. |
Precision Mechanics in Heavy Load Handling
The performance of a Submerged Arc Furnace Lifting Tool is determined by its load distribution geometry and material fatigue resistance. In submerged arc furnace lifting, HANI’s tool utilizes a proprietary CAD-optimized frame that ensures the center of gravity is always directly beneath the crane hook. This furnace shell lifter technology prevents the “swinging” of large components, which is a major cause of structural damage in handling equipment cycles.
Lifting Engineering Principles:
1. Stress-Relieved Fabrication: Ensures the Submerged Arc Furnace Lifting Tool frame does not crack under thermal load.
2. High-Strength Locking: Mechanical interlocks that prevent accidental release in the SAF Lifting Tool sequence.
3. Precision Leveling: Hydraulic micro-adjustments for perfect furnace shell lifter alignment.
Scientific facts show that improper submerged arc furnace lifting can cause localized stress concentrations that lead to catastrophic metal fatigue. HANI’s Submerged Arc Furnace Lifting Tool ensures that the load is spread across the entire structure, extending the life of your handling equipment and minimizing the risk of downtime. Our SAF Lifting Tool solutions also include NDT (Non-Destructive Testing) certification for every component, ensuring 100% operational reliability.
Key Advantages of HANI Lifting Solutions
- Highest Material Grade: Our Submerged Arc Furnace Lifting Tool is manufactured from Q460 or higher alloy steel, providing the best strength-to-weight ratio in handling equipment.
- Fail-Safe Locking: The SAF Lifting Tool features mechanical locks that are physically impossible to disengage while the tool is under load.
- Turnkey Customization: HANI provides bespoke furnace shell lifter designs tailored to the exact hook height and crane capacity of your smelting plant.
Professional FAQ for SAF Lifting Tools
Q1: What is the maximum capacity of a HANI Submerged Arc Furnace Lifting Tool?
A: We design SAF Lifting Tool units with capacities ranging from 10 tons for electrodes up to 250 tons for complete furnace shell lifter assemblies.
Q2: How does the tool handle the extreme heat of the furnace lid?
A: The handling equipment contact points are made from heat-resistant alloys and can be equipped with ceramic fiber insulation to protect the Submerged Arc Furnace Lifting Tool structure.
Q3: Is maintenance for the furnace shell lifter complex?
A: No. HANI’s handling equipment is designed for ease of inspection. A monthly visual check of the load points and quarterly lubrication of the mechanical locks are typically all that is required for the SAF Lifting Tool.
Secure Your Industrial Logistics with HANI
The Submerged Arc Furnace Lifting Tool is the backbone of safe maintenance. Partner with HANI for a world-class handling equipment solution that guarantees safety and efficiency.
